Represents the geological situation at the heading face of a cyclical tunneling project.
Characteristic |
Note |
Name |
Geological situation at headingface 002 |
Path |
\Tunneling |
Feature type icon |
|
Feature type class |
Group |
Spatial data support |
Spatial support on observation |
Allowed spatial systems |
Axis |
Allowed geometries |
N/A |
Allowed contained feature types |
None |
Table 1: Characteristics of this feature type
Property structure for type specific feature data
This feature type defines not property structure for type specific feature data.
Property structure for type specific observation data
The property structure for type specific observation data of this feature type is a rich structure containing multiple collections. Figure 1 shows a graphical representation of this property structure.
|

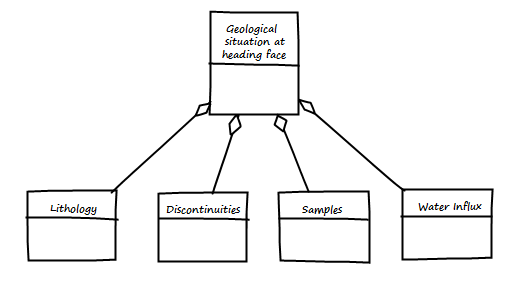

Figure 1: The structure of the type specific data for observations.
Property |
Description |
Round length ROUNDLENGTH |
Describes the geologic situation for rounds in a tunnel drive. This feature type is tailored for use in a hard rock environment. Property type: Numeric Default Value: null Validation rule: >= 0 |
Round number ROUNDNUMBER |
Number of the documented round. Property type: Numeric Default Value: null |
Cutdown area CUTDOWNAREA |
Actually area of heading face Property type: Numeric (Unit is the unit of the axis reference system's LCS) Default Value: null |
General notes GENERALNOTES |
General notes on the geologic situation. Property type: String |
Notes on rock mass ROCKMASSNOTES |
Notes on the surrounding rock mass. |
Notes on rock mass behaviour ROCKMASSBEHAVIOURNOTES |
Notes on the behaviour of the surrounding rock mass on excavation. |
Rock notes ROCKNOTES |
Notes on the rock. Property type: String |
Dicontinuity notes DISCONTINUITYNOTES |
Notes on the discontinuities. Property type: String |
Water notes WATERNOTES |
Notes on water conditions. Property type: String |
Heading face sketch HEADINGFACESKETCH |
Sketch of the geological situation at the heading face of this round. Property type: Referenced Image |
Sketch notes HEADINGFACESKETCHNOTES |
Notes on the heading face sketch. Property type: String |
Profile accuracy PROFILEACCURACY |
Accuracy of the excavation in relation to the planned excavation geometry. Property type: Classification |
Advance type ADVANCETYPE |
Defines how the tunnel was excavated in this round. Property type: Classification |
Excavation behaviour EXCAVATIONBEHAVIOUR |
Behaviour of the rockmass on excavation Property type: Classification |
Table 2: Level 0 properties of this feature type.
Lithology
Documentation of lithological units of this round.
Property |
Description |
Notes |
General notes on the lithological unit. Property type: String |
Color COLOR |
Description of the color of the lithological unit. Property type: String |
Geometry |
Geometry of the lithological unit on the heading face. Property type: Geometry |
Dipping |
Dipping of the lithological unit. |
Dipping direction DIPPINGDIRECTION |
Line of greatest inclination to the horizontal. |
Fragmentation FRAGMENTATION |
Physical fragmentation of rocks. Property type: Classification |
Water sensitivity WATERSENSITIVITY |
Influence of water on the chemical and physical characteristics of the rock. Property type: Classification |
Weathering WEATHERING |
Encompasses all reactions of the rock to exegenous factors. Property type: Classification |
Geologic unit GEOLOGICALUNIT |
The geologic unit this lithological unit belongs to. Property type: Classification |
Rock ROCK |
The main rock type that characterizes this lithological unit. Property type: Classification |
Rock strength ROCKSTRENGTH |
Classification of the lithological unit regarding its strength on pressure, tensile strength, shearing strength, and other factors. Property type: Classification |
Granular binging GRANULARBINDING |
Classification of the lithological unit regarding the binding of granular material. Property type: Classification |
Bedding BEDDING |
Classification of the lithological unit regarding its bedding. Property type: Classification |
Tectonic unit TECTONICUNIT |
Tectonic unit this lithological unit is associated with. Property type: Classification |
Stratigraphic unit STRATIGRAPHICUNIT |
Stratigraphic unite this lithological unit is associated with. |
Formation strength FORMATIONSTRENGTH |
Cohesiveness of rock that is totally divided by discontinuites. Property type: Classification |
Consistency CONSISTENCY |
Property type: Classification |
Plasticity PLASTICITY |
Property type: Classification |
Grainsize GRAINSIZE |
Property type: Classification |
Table 3: Properties of elements in the lithology collection
Dicontinuities
Documentation of discontinuities in this round.
Property |
Description |
Description |
Description of the discontinuity unit. Property type: String |
Location description LOCATIONDESCRIPTION |
Description of position, shape and and orientation of the discontinuity unit. Property type: String |
Geometry GEOMETRY |
Geometry of this discontinuity unit on the heading face. Property type: Geometry |
Dipping DIPPING |
Dipping of the discontinuities in this unit. Property type: Numeric |
Dipping direction DIPPINGDIRECTION |
Line of greatest inclination to the horizontal Property type: Numeric |
Orientation estimated ORIENTATIONESTIMATED |
Specifies if the orientation was measured or estimated Property type: Boolean Default value: false |
Genesis GENESIS |
Classification of this discontinuity unit regarding to its genesis. Property type: Classification |
Persistence PERSISTENCE |
Classification of this discontinuity unit regarding to its persistence. Property type: Classification |
Aperture APERTURE |
Classification of this discontinuity unit regarding to the aperture. If the discontinuities are filled this describes the thickness of the filling. Property type: Classification |
Spacing SPACING |
Classification of this discontinuity unit regarding to the spacing between two discontinuities in this unit. Property type: Classification |
Filling FILLING |
Material that fills the discontinuity. Property type: Classification |
Gouge GOUGE |
Gouge that is found on the discontinuity. |
ASPERITY |
Macroscopic description of the difference to a totally flat structure. Property type: Classification |
ROUGHNESS |
Microscopic description of the difference to a totally flat structure. Property type: Classification |
Table 4: Properties of elements in the discontinuities collection
Water influx
Documentation of water influx.
Property |
Description |
Notes NOTES |
General notes on this water influx. Property type: String |
Geometry GEOMETRY |
Geometry of this influx at the heading face. Property type: Geometry |
Leakage type LEAKAGETYPE |
Property type: Classification |
Leakage behaviour LEAKAGEBEHAVIOUR |
Property type: Classification |
Influx type INFLUXTYPE |
Property type: Classification |
Influx character INFLUXCHARACTER |
Property type: Classification |
Influx place INFLUXPLACE |
Property type: Classification |
Influx at INFLUXAT |
Property type: Classification |
Temperature |
Property type: Quantity |
PH Value |
Property type: Numeric |
Conductivity |
Property type: Quantity |
Table 5: Properties of elements in the water influx collection
Samples
Documentation of samples
Property |
Description |
Geometry GEOMETRY |
Position of sample on the heading face. Property type: Geometry |
Notes NOTES |
General notes on the sample. Property type: String |
Sample number SAMPLENUMBER |
Number or ID of the sample. Property type: String |
Sample type SAMPLETYPE |
Classifies the sample according to its type. |
Table 6: Properties of elements in the samples collection
