Axis offset to reference system offset

The position of a point on axis expressed as offset from the axis origin can be expressed as offset in an axis reference system by applying following formulas.

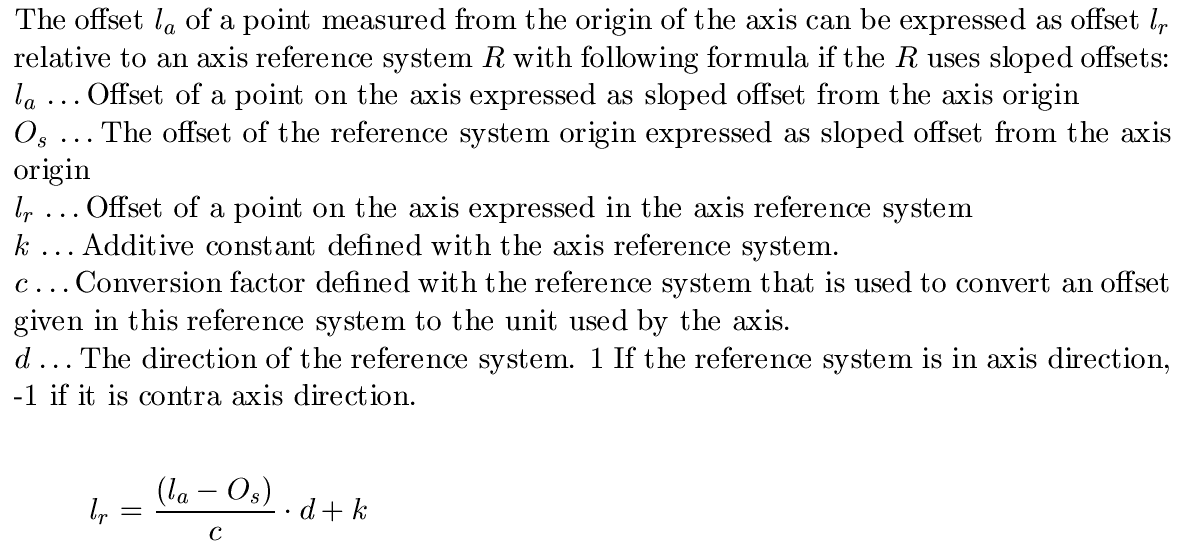

Listing 1: Converting an axis offset to an axis reference system offset for axis reference systems with sloped offset measurement

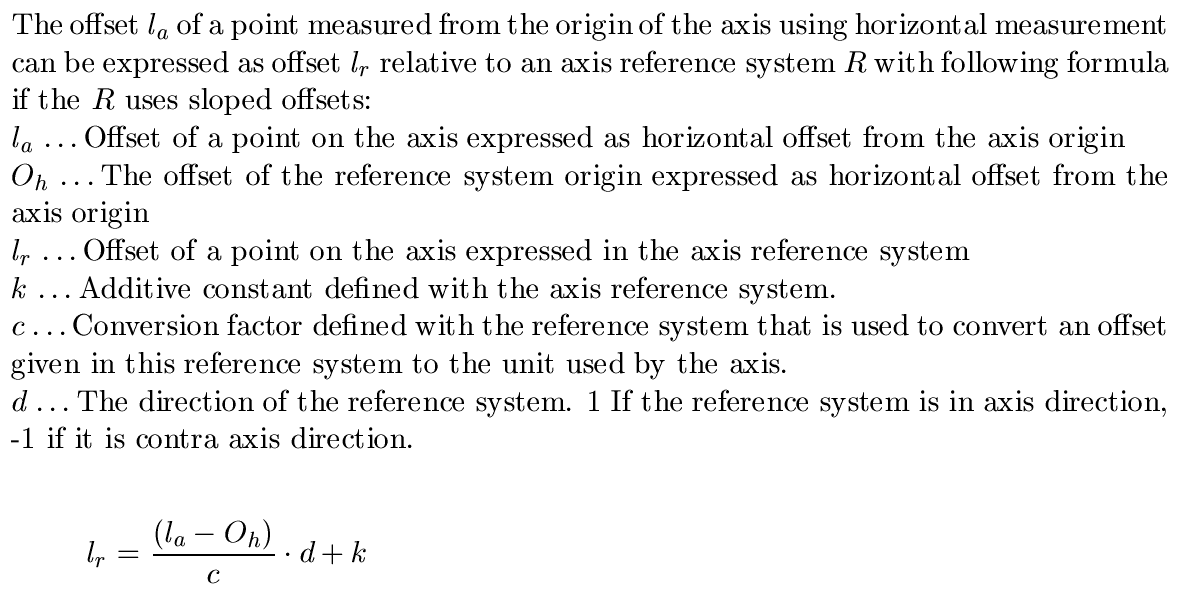

Listing 2: Converting an axis offset to an axis reference system offset for axis reference systems with horizontal offset measurement
