Reference system offset to axis offset

The position of a point on axis expressed as offset in a reference system can be expressed as an offset from the axis origin by applying following formulas.

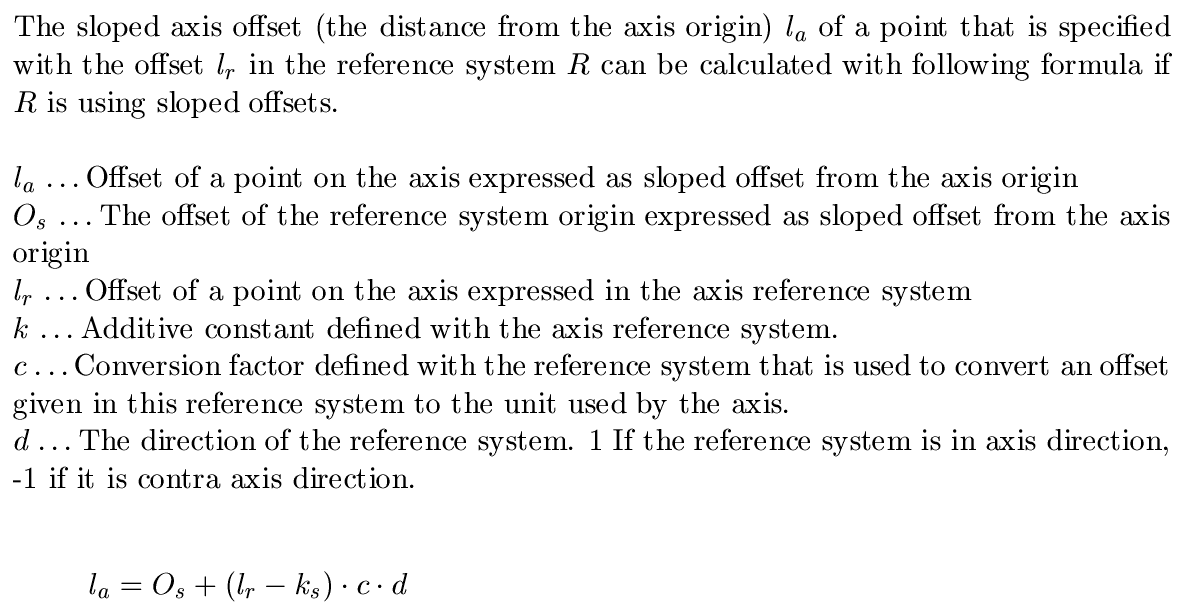

Listing 1: Converting an axis reference system offset to an axis offset for axis reference systems with sloped offset measurement

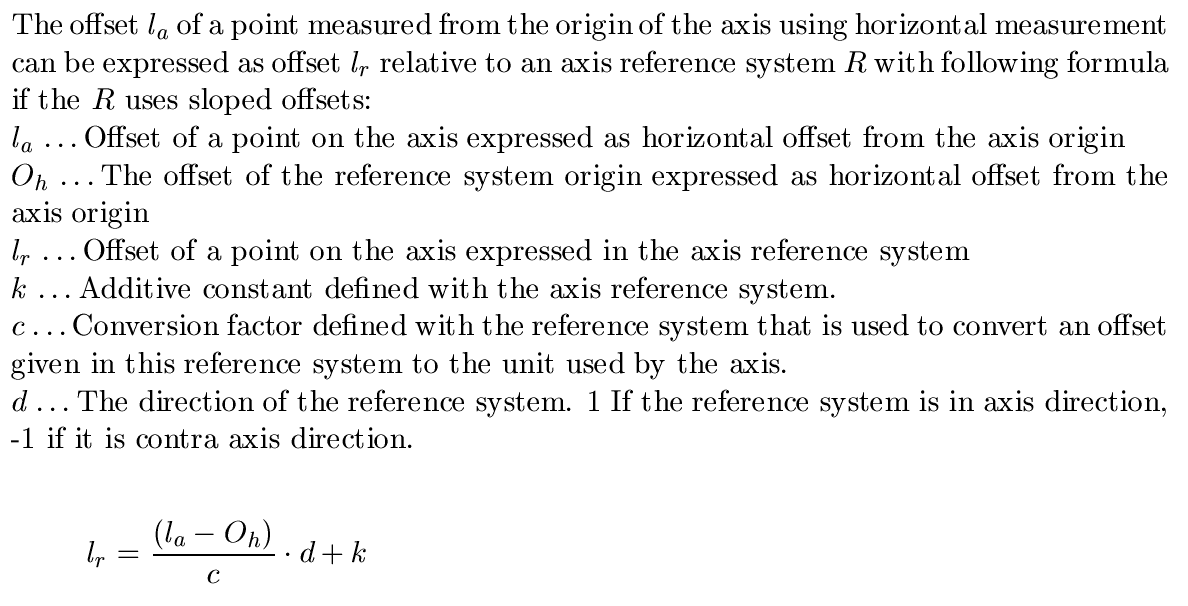

Listing 2: Converting an axis reference system offset to an axis offset for axis reference systems with horizontal offset measurement
