Step 2: Database connection

In this step you specify the database that shall be updated, and the credentials used to connect to that database.

In the Database server box type either the host name, the full DNS name or the IP address of the computer where the SQL database server on which the Application Server Database you whish to update is installed. On local area networks usually only the machine name is needed. If you run the Update Program on the computer where the Database Server is installed you can use localhost as Database server name.

If the SQL Server instance you want to install the Database to is a named instance you have to use the following syntax in the Database server box: <servername>\<instancename>.

Examples:

•A default installation of SQL Server Express on the local computer will install a named instance and can be accessed by <hostname>\SQLExpress or alternatively also .\sqlexpress .

•The default instance of an SQL Database Server installed on a computer named OurDatabaseServer located in the local area network can be accessed with OurDatabaseServer

The credentials used to logon to the specified database server and to create the new database can be either a Windows domain account or a local database login. The Update Program supports Windows domain user accounts only if both the Database Server and the computer on which the Update Program is executed are in the same Windows domain.

Note: The user you specify for accessing the database server must at least belong to the Db creator and the Security Admin roles. This is not not verified by the Setup Assistant, but the installation will fail if this condition is not met.

The Next > button will only be enabled if all necessary information has been given. When you click on Next > button the Update Assistant tries to connect to the specified database server with the specified credentials. If that connection fails the Setup Assistant will not continue and you will be notified to correct your settings (figure 2).

The database connection check might take up to 30 seconds.

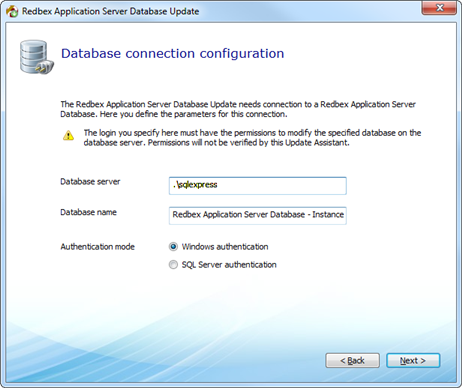

Figure 1: The Update Assistant's screen for defining the database to be updated

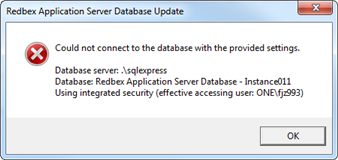

Figure 2: This message is shown if defined database connection cannot be established.
