The Application Server needs an Application Server Database as Backend for storing data. You should have already installed an Application Server databases before you install the Application Server. If not exit the Setup Assistant now.

In this step of the Setup Assistant you specify the credentials used to connect to the Application Server Database. You can use the Test connection command button to test the connection parameters. Note that if using Windows authentication mode the connection to the database server will be created using the user configured in step 4 when the Application Server is started as Windows Service. Therefore even if the connection test is successful at this point the connection might fail when the Application Server is started later.

In the Database server box type either the host name, the full DNS name or the IP address of the machine hosting the SQL database server. On local area networks usually only the machine name is needed. If you run the Setup Program on the computer where the Database Server is installed you can use localhost as Database server name.

If you want o connect to a specific SQL Server instance use following syntax:<servername>\<instancename>.

Examples:

•A default installation of SQL Server Express on the local computer can be accessed by localhost\SQLExpress.

•The default instance of an SQL Database Server installed on a computer named OurDatabaseServer located in the local area network can be accessed with OurDatabaseServer

In the Database name box type the name of the database that you created with the Database Setup Program.

The Authentication mode and optionally Username and Password boxes must be set to the values you defined during setup of the Application Server Database.

The connection configuration can be changed after installation by modifying the Instance configuration file.

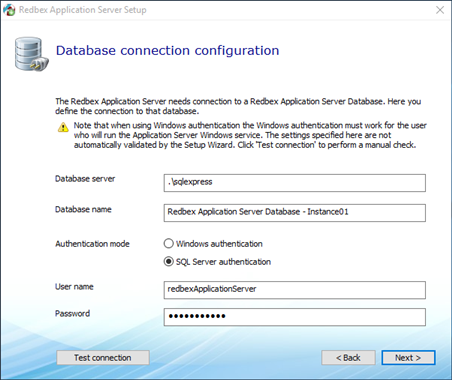

Figure 1: The Database connection configuration screen in the Setup Assistant.
